Below is a set of frequently used markdown commands for Jupyter Book 2 made with MyST. A good practice is to download the source file by clicking the download icon at the top right of this page and inspect the code.

Book structure¶

We can distinguish between two structures: that of the book’s content (a collection of different documents), and the (internal) structure of the chapters which consists of content structured in sections and subsections.

Table of Contents¶

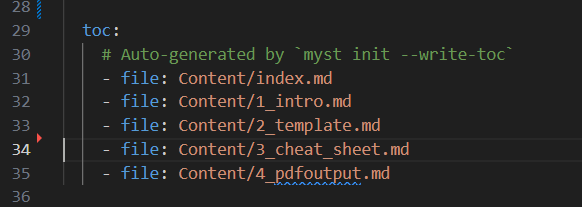

In the myst.yml file, you can specify the structure of the book as shown in Figure 1. Here you can indicate which files belong to the book and in what order. You can also create dropdown menus. When not specifying a ToC, all files are automatically included in alphabetical order.

If you create a new file, you need to add it to the myst.yml file to include it in the book.

Chapters, sections and subsections¶

To distinguish between chapter, section, and subsection (and further), use a number of # symbols, as shown below.

# H1 chapter
## H1.1 section
### H1.1.3 subsection

Basic Formatting¶

Markdown is a markup language where text formatting is done with small pieces of code (just like HTML). This is a table with some frequently used formatting options.

Element	Syntax	Example
Bold	`bold text`	Bold
Italic	`italics`	Italics
Emphasis	`*emphasis*`	emphasis
Inline Formula	$F = m \cdot a$	$F = m \cdot a$
Footnote	`- A footnote reference[^myref]` `[^myref]: This is an auto-numbered footnote definition.`	- A footnote reference^[1]

You can create a new line by either a hard enter and a blank line, a \ at the end of the line and enter, or two spaces at the end of the line.

New Line¶

Generally, in markdown, a single hard enter does not create a new line. You need to use one of the options below.

ways for a new line

syntax

A new line with double space.
A new line with a \.
A new line with a hard enter and blank line.

No new line with just a hard enter and text on the next line. Like this

Equations & Symbols¶

For STEM subjects, mathematical equations and symbols ( $\Delta \lambda$ ) are essential. You can include equations in JB’s. What is possible in LaTeX is also possible in JB, for example:

F_{res} = m \cdot a

(1)

Where labeled equations, such as (1), can be referenced.

$$ Equation $$ (<label>)

But you can also include inline equations like this: $s=v_{avg}t$ . Use a single dollar sign before and after: $ Equation $

Name	Script	Symbols
root	`\sqrt{4}`	$\sqrt{4}$
power	`^{2x}`	$^{2x}$
fraction	`\frac{2}{3}`	$\frac{2}{3}$
subscript	`_{avg}`	$_{avg}$
superscript	`^{N}`	$^{N}$
multiply	`\cdot`	$\cdot$

Some examples:

Name	Script	Output
Derivative	`\frac{\Delta f}{\Delta t}`	$\frac{\Delta f}{\Delta t}$
Integral	`\int_a^b dx`	$\int_a^b dx$
sine	`sin(x)`	$sin(x)$

More: https://en.wikibooks.org/wiki/LaTeX/Mathematics

Lists & tables¶

Lists Option 1¶

list

syntax

item 1
item 2.
item 3.

Lists Option 2¶

list

syntax

item 1
item 2.
item 3.

Tables¶

Tables are created with the separator |

Tables

MyST Syntax

|Header 1|Header 2|Header 3|
|---|---|---|
|text 1|text 2|text 3|
|text 4|text 5|text 6|

Or via ...

Tables

MyST Syntax

Table 1:Overview of sanctions for certain behavior

Behavior Sanction for 1st time Sanction for 2nd time
Not (timely or with a valid reason) deregistered A penalty exclusion

Behavior

Sanction for 1st time
Sanction for 2nd time

Not (timely or with a valid reason) deregistered

A penalty
exclusion

```{list-table} Overview of sanctions for certain behavior
:header-rows: 1
:name: tl_sanctions
* - Behavior
    - Sanction for 1st time
    - Sanction for 2nd time
* - Not (timely or with a valid reason) deregistered
    - A penalty
    - exclusion
```

Method 2 has the advantage of allowing references to Table 1

Tabs¶

::::{tab-set}
:::{tab-item} Tab 1
Text in tab 1
:::

:::{tab-item} Tab 2
Text in tab 2
:::
::::

Will create this tab:

Tab 1

Tab 2

Text in tab 1

Checklists¶

list

syntax

Create a markdown cheat sheet
Publish online
Let others test

Admonitions¶

You can add special blocks that are highlighted in the text. See, for example, the warning below.

Created using:

```{warning}
Here is a warning
```

There are different variants such as:

tip
admonition
warning
note
objective
see also ...

Exercises¶

A special case is the exercises which can be labeled and can come with a solution that is linked to the exercise:

Solution to Exercise 1

Figures¶

A site/book naturally needs figures. There are roughly two ways to add a figure:

Quick figure, without formatting options

| Quick figure | ![](link to figure) |

Better way with more control:

Figures

MyST Syntax

Here we used figures hosted online, but you can also add figures to a folder (e.g., called Figures), and then use a relative path.

YouTube¶

To embed YouTube videos on the site, you need the embed YT link. The code is then:

YouTube

syntax

A super fun video from the project Show the Physics

```{iframe} https://www.youtube.com/embed/YDBr1Lof_mI?si=thWYK9MFi5QJv-tW
:width: 80%
:align: center

A super fun video from the project [Show the Physics](https://interactivetextbooks.tudelft.nl/showthephysics)
```

References & Links¶

You can included links like this. With the markdown syntax: [text](link).

It also possible to include reference through the reference.bib file, or directly by including the DOI: Pols (2021) (syntax: [](https://doi.org/10.1088/1361-6552/abf208)) or Pols, 2021 (syntax: [@doi:10.1088/1361-6552/abf208]).

Below a few examples of links and references to labeled items.

list

syntax

This is a hyperlink
This is a reference to equation (1)
This is a reference to a table like Table 1
This is a reference to a figure like Figure 2

* This is a [hyperlink](https://nos.nl)
* This is a reference to equation {eq}`eq:Newton`
* This is a reference to a table like {numref}`Table {number} <tl_sanctions>`
* This is a reference to a figure like {numref}`Figure {number} <fig_sunset>`

Footnotes¶

This is an auto-numbered footnote definition.
↩

References¶

Pols, F. (2021). What’s inside the pink box? A nature of science activity for teachers and students. Physics Education, 56(4), 045004. 10.1088/1361-6552/abf208
Pols, F. (2021). What’s inside the pink box? A nature of science activity for teachers and students. Physics Education, 56(4), 045004. 10.1088/1361-6552/abf208
